Atomic-Tuned Motor

AtomicTunedMotor

AtomicTuned2Motor

AtomicTunedMotorPRO

AtomicTuned2MotorPRO

No. 15215 (AT1)
94265 (AT1 J-Cup Sp)
15486 (AT2)
15351 (AT1 PRO)
15489 (AT2 PRO)
Release Date June 10, 1997 (AT1)
December 17, 2005 (AT1 PRO)
July 4, 2015 (AT2/AT2 PRO)
Parts type Motor
Motor Specfication
Rev Atomic-Tuned Motor
Non-load: 15,700rpm (1st version),16,200rpm (later version)
Load: 13,700rpm
Atomic-Tuned 2 Motor
Non-load: N/A
Load: 12700 to 14900rpm
Atomic-Tuned Motor PRO
Non-load: N/A
Load: 13,700rpm
Atomic-Tuned 2 Motor PRO
Non-load: N/A
Load: 12300 to 14500rpm
Torque 14g-cm (AT1/AT1 PRO)
1.5-1.8mN-m (AT2)
1.6-1.8mN-m (AT2 PRO)
Electric consumption 1,300mA (AT1 1st version)
1,500 to 1,900mA (AT1 later version)
1.8 to 2.2A (AT2)
1,300mA (AT1 PRO)
1.5 to 1.7A (AT2 PRO)
Weight 17g (AT1/AT2)
18.7g (AT1 PRO/AT2 PRO)
Manufacturer(s) Mabuchi Motor (AT1)
SMC Motor (AT2/AT1 PRO/AT2 PRO)

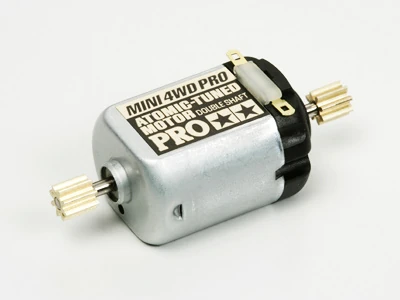

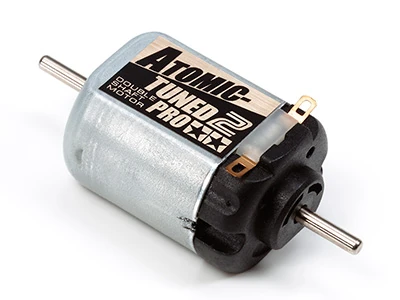

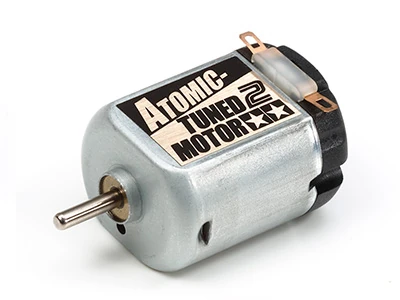

The Atomic-Tuned Motor (Japanese: アトミックチューンモーター, Atomikku Chūn Mōtā) is a series of Mini 4WD motors manufactures by Mabuchi Motor and later SMC Motor and released by Tamiya.

General info

The Atomic-Tuned Motor is a balance-type motor with the perfomance characteristic that is similar to the Hyper Mini Motor. It sits between the speed-focused Rev-Tuned Motor and the acceleration-focused Torque-Tuned Motor.

While both the power and torque of the motor are a little bit inferior than the aforementioned tuned motors, it is suitable for race tracks that requires both power and torque performance if the use of Hyper-Dash Motor is impossible due to course layout.

Only the original Atomic-Tuned Motor has the deep gray endbell cap, while the others has black endbell caps. All models has the silver metal housings. Only the original Atomic-Tuned Motor PRO came with the brass pinion gears attached.

External links

Tamiya Japan

Tamiya America

Tamiya Online Shop

Mini 4WD motors
Regular FA-130 Motor* · Hyper Mini Motor · Hyper-Dash Motor*† · Mach-Dash Motor* · Torque-Tuned Motor*† · Rev-Tuned Motor*† · Ultra Dash Motor · Jet-Dash Motor · Plasma-Dash Motor · Atomic-Tuned Motor*† · Touch Dash Motor · Power Dash Motor · Sprint Dash Motor · Light-Dash Motor*
Limited editions ZEN-Tuned Motor · Turbo-Dash Motor
* denotes Mini 4WD PRO version available; † denotes newer version(s) of the motor available.
