HG Carbon Stay for Wide Sliding Damper

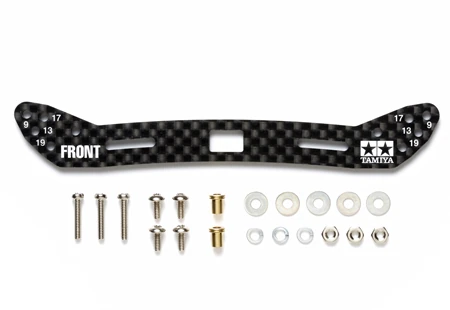

No. 95284 (Carbon front 2mm)

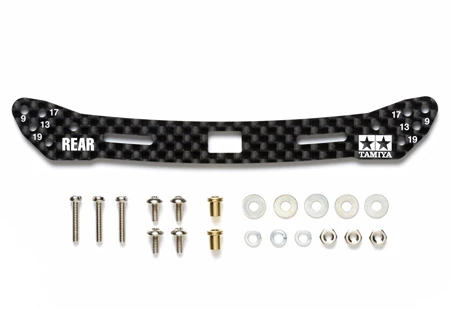

95285 (Carbon rear 2mm)
Release Date January 14, 2017 (Orignal release)
September 22, 2018 (Re-release)
Parts type Bumper/Rear Stay
Bumper/Rear Stay
Type Reinforced
Sliding Type (used in conjunction of Wide Sliding Damper)
Material(s) CFRP
The HG carbon stay for wide sliding dampers (Japanese: HG ワイドスライドダンパー用カーボンステー, HG Waido Suraido Danpā-yō Kābon Sutē) are the series of limited edition Mini 4WD Grade-up Parts released by Tamiya on January 14, 2017.

General info Edit

As their names implies, those reinforced plates were primary designed to replace the standard aluminum parts of the wide sliding damper sets. Compare to the standard aluminum plates, those reinforced plates are 40% lighter while offering similar strength.

The reinforced plates alone can be attached directly onto the chassis to strengthen the bumper and rear stay. The attachment holes for rollers on each ends were designed for 9 mm, 13 mm, 17 mm and 19 mm rollers.

All sets includes three 10 mm screws, four truss screws, five washers, three spring washers, two roller stoppers and three lock nuts.
