Light-Dash Motor

LightDashMotor

LightDashMotorPRO

No. 15402 (PRO)
15455 (Single shaft)
Release Date June 27, 2009 (PRO)
December 8, 2012 (Single Shaft)
Parts type Motor
Motor Specfication
Rev Non-load:17,800rpm
Load:14,600rpm
Torque 19.4g-cm (Single shaft)
13.3 to 19.4g-cm (PRO)
Electric consumption 1,500 to 2,200mA (Single shaft 1st version)
2,400 to 3,000mA (Single Shaft later versions)
1,500 to 2,200mA (PRO)
Weight 17.9g (PRO)
Manufacturer(s) SMC Motor
The Light-Dash Motor (Japanese: ライトダッシュモーター, Raito Dasshu Mōtā) are a series of Mini 4WD motors manufactures by SMC Motor and released by Tamiya since June 27, 2009.

General info Edit

The Light-Dash Motor is a balance-type motor that sits between the Atomic-Tuned Motor and the Hyper-Dash Motor in terms of performance characteristic.

While the revving performance of the motor is similar to that of the Rev-Tuned Motor, it has the higher torque performance that is comparable to the non-race-legal Ultra Dash Motor. Unfortunately, its endurance characteristic suffers as It utilizes the bronze brushes.

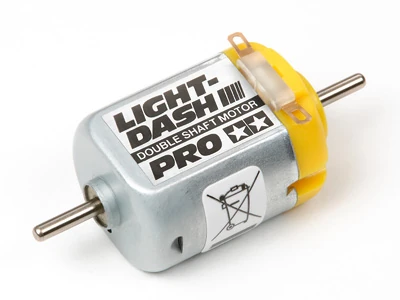

Both variants has the yellow endbell cap and silver metal housing.

External links Edit

Tamiya Japan Edit

Tamiya America Edit

Tamiya Online Shop Edit

Mini 4WD motors
Regular FA-130 Motor* · Hyper Mini Motor · Hyper-Dash Motor*† · Mach-Dash Motor* · Torque-Tuned Motor*† · Rev-Tuned Motor*† · Ultra Dash Motor · Jet-Dash Motor · Plasma-Dash Motor · Atomic-Tuned Motor*† · Touch Dash Motor · Power Dash Motor · Sprint Dash Motor · Light-Dash Motor*
Limited editions ZEN-Tuned Motor · Turbo-Dash Motor
* denotes Mini 4WD PRO version available; † denotes newer version(s) of the motor available.
