Mini 4WD Ni-Cd Battery



No. 15009 (2-battery and charger set)
15010 (2-battery set)
15122 (2-battery and 40 min charger set)
Release Date 1988 (2-battery and charger set/2-battery set)
December 31, 1995 (2-battery and 40 min charger set)
Parts type Battery and Charger
Battery Specfication
Type Nickel-cadmium (Ni-Cd)
Capacity 700mAh
Voltage 1.2v
Manufacturer(s) Sanyo (A subsidary company of Panasonic)
Charger Specfication
Charge Voltage/Current DC 2.9v/700mAh
Number of Batteries 2
Charge Time(s) Approx. 40 minutes (with 2 Mini 4WD Ni-Cd Batteries)
Charge Time(s) N.Densan P.G.

The Mini 4WD Ni-Cd Battery (Japanese: ミニ四駆 ニカドバッテリー, Mini Yonku Nikado Batterī) is the rechargeable battery manufactured by Sanyo (A subsidary company of Panasonic) and released by Tamiya in 1988. Based on Sanyo and later Panasonic's Cadnica battery, it is the very first rechageable battery made specifically for Mini 4WD racing.

The battery was available in 2 battery pack, the bundle with the Ni-Cd Battery Charger and the bundle with the Ni-Cd AC Fast Charger Set (40 min. type).

General info[edit | edit source]

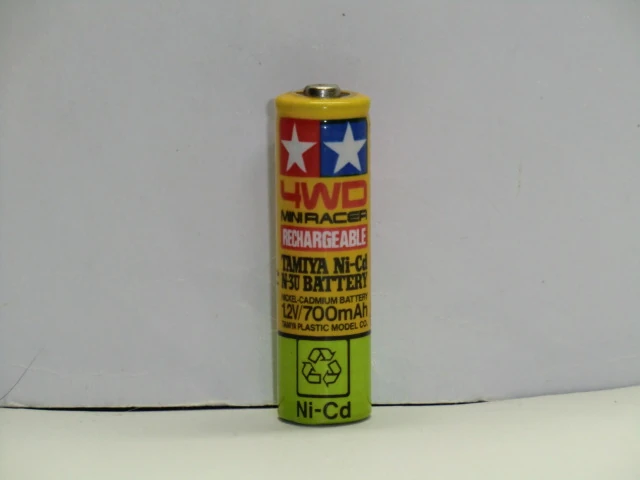

The external of the battery was mostly in yellow with 4WD racer and Tamiya labels on it. later revision of the same battery has the green recycle label on the lower part of the battery.

It has higher output compare to the regular, non-rechargeable batteries, and its power delivery is very consistent. Since it is the rechargeable battery, it can be recharged with the specialized charger(s).

However, like other nickel-cadmium batteries (regardless of what brands is), it has high self-discharge rate and is not environment-friendly due to the cadmium content the battery contains. Memory effect is also likely to occurs on this type of rechargeable battery and is permanent compare to the nickel–metal hydride battery like the NeoChamp battery.

It was superseded by the Mini 4WD Ni-Cd 1000 battery, the larger capacity version of the battery.

Ni-Cd AC Fast Charger Set (40 min. type)[edit | edit source]

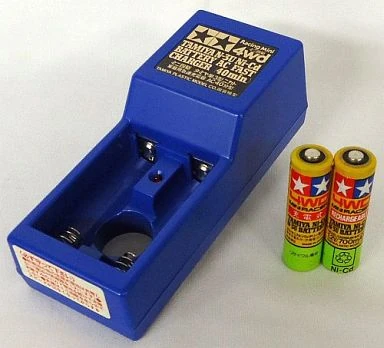

This Ni-Cd AC Fast Charger Set, which included in one of the Mini 4WD Ni-Cd battery sets, was designed to recharge a pair of Mini 4WD Ni-Cd batteries (or a pair of Ni-Cd Battery) in approximately 40 minutes.

Due to its fast charging capability, it potentially put stress on the batteries and having a risk of over-charging, which potentially shorten the batteries' life.
