|No.|| 25011 (RT1/1st version)|
15133 (RT1/Later versions)
15350 (RT1 PRO)
15488 (RT2 PRO)
|Release Date|| 1992 (RT1)|
2005 (RT1 PRO)
2015 (RT2/RT2 PRO)
|Rev|| Rev-Tuned Motor|
Non-load: 17,600rpm (1st version), 17,400rpm (Later versions)
Rev-Tuned 2 Motor
Load: 13400 to 15200rpm
Rev-Tuned Motor PRO
Rev-Tuned 2 Motor PRO
|Torque|| 10g-cm (RT1/1st version)|
13.3g-cm (RT1/Later versions)
1.2 to 1.5mN-m (RT2/RT2 PRO)
10g-cm (RT1 PRO)
|Electric consumption|| 1,500mA (RT1/1st version)|
1,600 to 2,000mA (RT1/Later versions)
1.6 to 2.0A (RT2)
1,500mA (RT1 PRO)
1.5-1.8A (RT2 PRO)
|Weight|| 17g (RT1/RT2)|
19.2g (RT1 PRO/RT2 PRO)
|Manufacturer(s)|| Mabuchi Motor (RT1)|
SMC Motor (RT2/RT1 PRO/RT2 PRO)

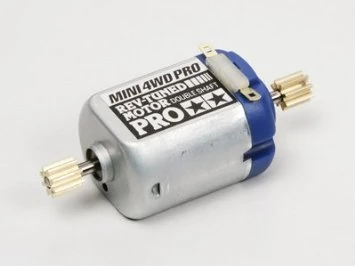

The Rev-Tuned Motor (Japanese: レブチューンモーター, Rebu Chūn Mōtā) is a series of Mini 4WD motors manufactured by Mabuchi Motor and later SMC Motor and released by Tamiya. It was originally introduced as a Grade-Up Parts for the Mini F minicar.
General info Edit
As its name implies, it is a speed-focused motor and has higher power but lower torque when compare to Torque-Tuned Motor.
The original version of the Rev-Tuned Motor has the Mini-F label as it was originally a upgrade parts for Mini-F. The second version changed the label to replace the word 'Mini-F' with '4WD' (as in Mini 4WD). The current version has the word '4WD' removed from the label and the empty space has been filled with the larger-size of the words 'Rev-Tuned Motor'.
The original Rev-Tuned Motor had the purple endbell cap, while the rest of the Rev-Tuned Motors have the blue endbell cap. Only the original Rev-Tuned Motor PRO came with brass pinion gears attached.
Due to its lower torque, it is not recommended to use on Mini 4WD cars with large-diameter wheels and low-gear ratios.
- In Bakusou Kyoudai Let's & Go!, Go Seiba used the Rev-Tuned Motor on his Magnum Saber until it finally stopped working when he used it on his Victory Magnum during the Tokichi Cup.
Tamiya Japan Edit
Tamiya America Edit
- Rev-Tuned Motor PRO on Tamiya America official website
- Rev-Tuned 2 Motor on Tamiya America official website
- Rev-Tuned 2 Motor PRO on Tamiya America official website
|Mini 4WD motors|
|Regular||FA-130 Motor* · Hyper Mini Motor · Hyper-Dash Motor*† · Mach-Dash Motor* · Torque-Tuned Motor*† · Rev-Tuned Motor*† · Ultra Dash Motor · Jet-Dash Motor · Plasma-Dash Motor · Atomic-Tuned Motor*† · Touch Dash Motor · Power Dash Motor · Sprint Dash Motor · Light-Dash Motor*|
|Limited editions||ZEN-Tuned Motor · Turbo-Dash Motor|
|* denotes Mini 4WD PRO version available; † denotes newer version(s) of the motor available.|
