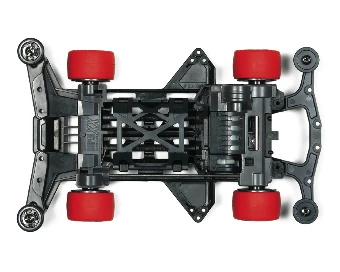

The Super XX Chassis (Japanese: スーパーXXシャーシ, Sūpā Daburuekkusu Shāshi) is a Mini 4WD chassis released by Tamiya in November 2009. It debuted with the release of Max Breaker Black Special.
General info[]
The Super XX Chassis is the improved version of the Super X Chassis.
While the front bumper itself remain unchanged, an additional front nose guard can be attached to widen the front bumper as well as provide frontal protection. The center parts and the side-guards were strengthen and in case of the side-guards, additional attachment holes has been added. Instead of the two-hardpoint rear stay, it comes with the newly-designed one-hardpoint rear stay with additional attachment holes.
Much like its predecessor, the Super XX Chassis allows easy access to the motor by removing the under motor cover. The official regulations prohibit the use of pink or carbon helical crown gears with Super XX Chassis.
Overall, the Super XX has greater adaptability and more rigid than the Super X.
Colors[]
Chassis frame[]
- Black - First equipped with Max Breaker Black Special.
- White - First equipped with Rising-Trigger White Special.
- Clear blue - First released as a Grade-up Parts.
- Smoke - First released as a Grade-up Parts.
- Red - First equipped with Dyna-Hawk GX Super XX Special.
- Carbon gray - First equipped with Laser-Gill Super XX Special.
- Light blue - First equipped with Shadow Breaker Z-3 Super XX Special.
- Dark blue - First equipped with Knuckle Breaker Blue Special.
- Fluorescent Green - First released as a Grade-up Parts.
- Fluorescent Pink - First released as a Grade-up Parts.
- Marine blue - First equipped with Cross-Tiger VR Sea Blue Version.
- Fluorescent Yellow - First released as a Grade-up Parts.
- Fluorescent Orange - First released as a Grade-up Parts.
A parts[]
- Dark gray - First equipped with Max Breaker Black Special.
- Purple - First equipped with Thunder Shot Open Top.
- White - First equipped with Rising-Trigger White Special.
- Clear blue - First released as a Grade-up Parts.
- Smoke - First released as a Grade-up Parts.
- Red - First equipped witth Dyna-Hawk GX Super XX Special.
- Metallic gray - First equipped with Laser-Gill Super XX Special.
- Light blue - First equipped with Shadow Breaker Z-3 Super XX Special.
- Dark blue - First equipped with Knuckle Breaker Blue Special.
- Fluorescent Green - First released as a Grade-up Parts.
- Fluorescent Pink - First released as a Grade-up Parts.
- Marine blue - First equipped with Cross-Tiger VR Sea Blue Version.
- Fluorescent Yellow - First released as a Grade-up Parts.
- Fluorescent Orange - First released as a Grade-up Parts.
Technical info[]
Chassis Data | |
Length | 153 mm |
Width | 98 mm |
Wheelbase | 84 mm |
Ground Clearance | 5.2 mm (With large-diameter wheels) 1.9 mm (With small-diameter X-type wheels |
Driveshaft Length | 72 mm |
Compatible Gear Set(s) | 5:1 4.2:1 4:1 3.7:1 3.5:1 |
Roller Down Thrust Angle | 6.5 |
Terminal Type | X-type |
Weight | With batteries: 119 g Without batteries: 70 g |

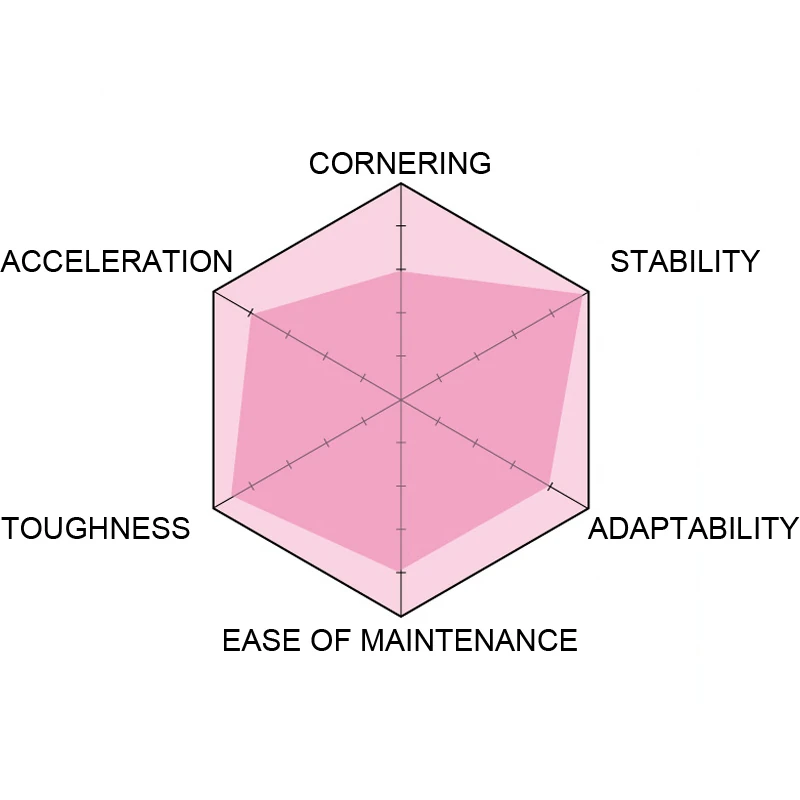

Chassis Stats | ||
Toughness | 4.5 | |
Acceleration | 3.9 | |
Cornering | 3 | |
Stability | 4.8 | |
Adaptability | 3.9 | |
Ease of Maintenance | 4 |
